Wide Track 86
02-09-2023, 12:08 AM
Post: #1
Wide Track 86
Has anyone fitted wide spacers to their ae86? Wide as in +40mm front and rear? I’m not concerned so much with body clearance as I’m using fender flares. I’m more interested in the effect on steering and braking. I’m fitting 16x8 with +20mm offset on the front
Find all posts by this user
02-09-2023, 04:27 AM
Post: #2
Wide Track 86
While your fender flares may cover the will another issue you will face up front is clearing the bumper and the mudgard depending which way the wheel is turned. At least that's an issue I faced with 15x8 ET0 when fitted with 25mm spacers before I switch to longer lower arms. Adjustable tension arms also help to position the wheel properly back to front, especially when the car is lowered too.

AE86 ex-daily
Visit this user's website Find all posts by this user
02-09-2023, 09:47 AM
Post: #3
Wide Track 86
(02-09-2023 04:27 AM)Bean Wrote:  While your fender flares may cover the will another issue you will face up front is clearing the bumper and the mudgard depending which way the wheel is turned. At least that's an issue I faced with 15x8 ET0 when fitted with 25mm spacers before I switch to longer lower arms. Adjustable tension arms also help to position the wheel properly back to front, especially when the car is lowered too.

Thanks Bean. You had no handling/braking issues though?
Find all posts by this user
02-10-2023, 03:07 AM
Post: #4
Wide Track 86
Some bump steer but that's related to lowering rather than the extra width.

AE86 ex-daily
Visit this user's website Find all posts by this user
02-12-2023, 08:54 AM
Post: #5
Wide Track 86
(02-09-2023 12:08 AM)Mylesmck Wrote:  Has anyone fitted wide spacers to their ae86? Wide as in +40mm front and rear? I’m not concerned so much with body clearance as I’m using fender flares. I’m more interested in the effect on steering and braking. I’m fitting 16x8 with +20mm offset on the front

I used to run complete S13 front subframe with susupenion parts (along with a SR20DET) to fill the front arches (CBY overfenders) with 15x8 ET0 wheels.
I would try to avoid using spacers thicker more then 5-10mm.

Drifting - best fun you can have in your car with your pants on!
Visit this user's website Find all posts by this user
02-12-2023, 12:10 PM
Post: #6
Wide Track 86
Interesting. I’m approaching the point where I need to decide to add 40mm spacers all round, or 5mm spacers up front with standard arches and the smaller arch extensions (from Flo) at the rear (no spacers).
I know someone who has gone with 40mm, but his car is nearing completion and I don’t think it’s been driven yet.
I was hoping for someone who has done it to say the difference in scrub radius made the car better/worse/undriveable at low speed but fine when moving/more or less self-correcting, squirming under high speed braking etc.

Ps. It’s non power steering with a quick rack (so I’m expecting heavy steering at parking speeds anyway)
Find all posts by this user
02-12-2023, 05:54 PM
Post: #7
Wide Track 86
As said at this range you need to look into moving the pivot point out and not just space/offset the wheel. Obviously taking this to the extreme will need some changes to the suspension at one point too as the minimum camber will increase, tension arms need to be longer/mount more adjustable and so forth.

AE86 ex-daily
Visit this user's website Find all posts by this user
05-27-2023, 07:24 PM (This post was last modified: 05-28-2023 10:23 AM by Mylesmck.)
Post: #8
Wide Track 86

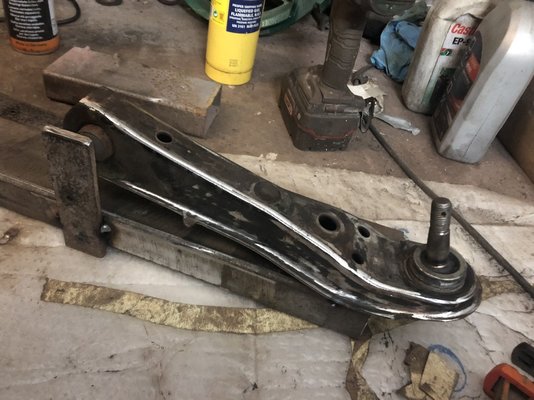

@Bean like this?
[Image: AEU86 AE86 - Wide Track 86]

[Image: AEU86 AE86 - Wide Track 86]

[Image: AEU86 AE86 - Wide Track 86]

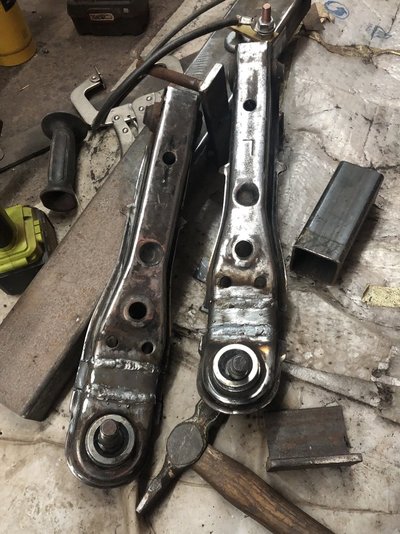

...I wish I'd known more about wheels before I bought the 16x8 et20 and 16x9 et0 set, not ideal but I like how they look. Having added 25mm to the lower control arms, if I push the camber plates out fully I'm left with a small amount of negative camber. The positive offset means I need 5mm minimum spacers to allow the to clear the struts, if I don't set the coilovers too low

[Image: AEU86 AE86 - Wide Track 86]


Attached File(s) Thumbnail(s)

Find all posts by this user
05-28-2023, 09:51 PM
Post: #9
Wide Track 86
Yes, something like that. I can't remember exactly which ones I've bought (it was over 10 years ago) but I think they were originally meant for the Carina or Corona and fitted my needs perfectly.

AE86 ex-daily
Visit this user's website Find all posts by this user
