my celica race car with race beams
|
|
07-24-2011, 01:34 AM
Post: #1
|
|||
|
|||
|
my celica race car with race beams
this has been on going for the last 15 years[img name=]http://www.aeu86.org/files/re/recoverd_jpg_file2223_266.jpg[/img][img name=]http://www.aeu86.org/files/re/recoverd_jpg_file4252_115.jpg[/img][img name=]http://www.aeu86.org/files/re/recoverd_jpg_file4558_202.jpg[/img]
|
|||
|
|
07-24-2011, 01:52 AM
Post: #2
|
|||
|
|||
|
my celica race car with race beams
and some more[img name=]http://www.aeu86.org/files/im/img_04821_196.jpg[/img][img name=]http://www.aeu86.org/files/im/img_02001_610.jpg[/img][img name=]http://www.aeu86.org/files/im/img_01861_100.jpg[/img][img name=]http://www.aeu86.org/files/re/recoverd_jpg_file4249_330.jpg[/img][img name=]http://www.aeu86.org/files/re/recoverd_jpg_file4250_457.jpg[/img][img name=]http://www.aeu86.org/files/re/recoverd_jpg_file30_649.jpg[/img][img name=]http://www.aeu86.org/files/re/recoverd_jpg_file4_166.jpg[/img]
|
|||
|
|
|
07-24-2011, 02:03 AM
Post: #3
|
|||
|
|||
|
my celica race car with race beams
ok abit about this car its a japenese GT celica ,runs a 7.5 gt rear end

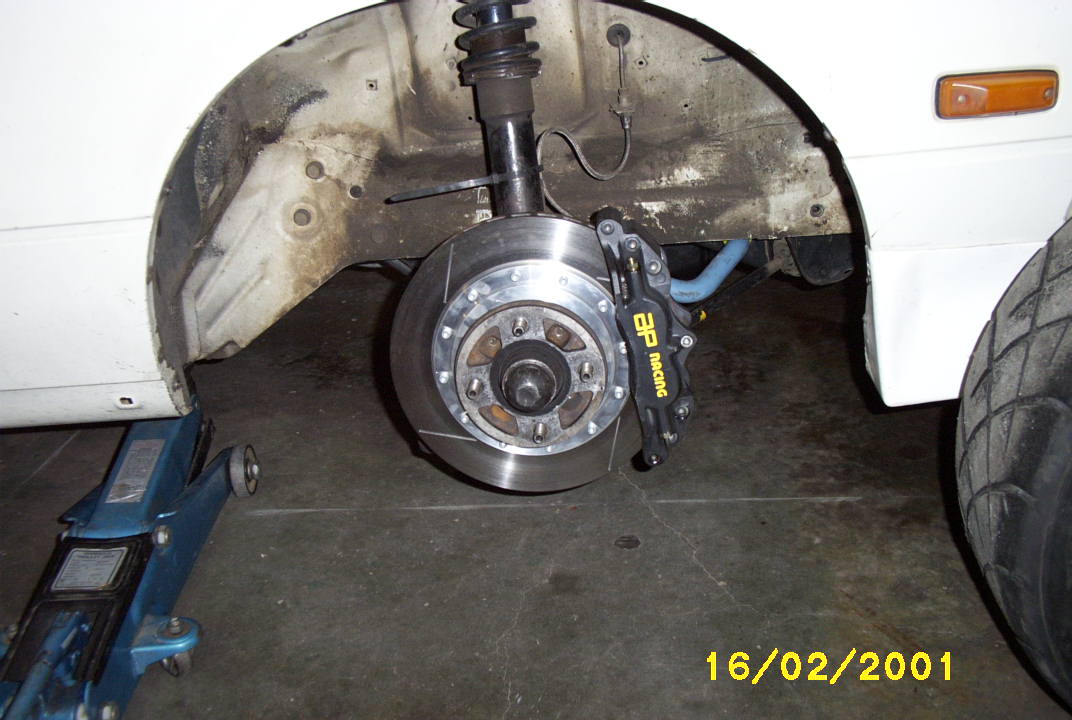

has AP discs front and rear with 4 spots on the front and 4 spots on the rear the car weighs in at 998 kilos before i get in and retains most of the interior as per our rules ,but we are able to take out back seat for roll cage and heating etc ,but must retain headlining and passenger seat the motor in the last set of pics with curved ram tubes is the current set up running 14.5 to 1 comp cams are 14.65 mm of lift 1 tooth of vvti on each cam 50mm quad throttles with 2 stage injection and big air box current power is 204 kws at back wheels at 9200 rpm and motor idles at 900 rpm |
|||
|
|
|
07-24-2011, 03:51 PM
Post: #4
|
|||
|
|||
|
my celica race car with race beams
Really cool car and what a nice engine
Project AE86 now begun. Cars I have owned: Toyota Starlet EP91 1,3 16v Turbo, 200hp Toyota Starlet EP71 1,3 12v Sport Mercedes 207D camper, 1977. Toyota Starlet EP70 with a 174hp Silvertop 20v See video here: http://videos.streetfire.net/search/Star...079edc.htm Toyota Corolla AE101 with a 164hp Silvertop 20v. (Evolution bodykit and candycolor paint). Volvo 240 2,1 (The only car I have maked money on). Toyota Corolla EE90 (my first car) |
|||
|
|
|
08-15-2011, 12:37 AM
Post: #5
|
|||
|
|||
|
my celica race car with race beams
I love celicas man! your's is an amazing example!
Understeer is when the front end hits the wall. Oversteer is when your back end hits the wall. Horsepower is how fast you hit the wall. Torque is how far you take the wall with you! |
|||
|
|
|
08-15-2011, 08:11 AM
Post: #6
|
|||
|
|||
|
my celica race car with race beams
Oy vey! Cool car and sweet engine setup. Nice to see that you are sticking with the VVTi. How many degrees of adjustment does the single tooth give you?
A wheel to steer the front of the car A pedal to steer the rear |
|||
|
|
|
08-16-2011, 08:31 AM
Post: #7
|
|||
|
|||
|
my celica race car with race beams
its about a tooth and a half actully in dial indicator terms .its 240 back to 80 on the inlet and 130 off back to 70 on the exhaust
|
|||
|
|
|
09-04-2011, 02:51 AM
Post: #8
|
|||
|
|||
|
my celica race car with race beams
ok here are some old vids from inside the car http://www.youtube.com/watch?v=ndkb8gE_eoc
http://www.youtube.com/watch?v=39VPb8t5l...re=related http://www.youtube.com/watch?v=Mp5A_2p500k ok a few of my car around sandown and philip island |
|||
|
|
|
09-04-2011, 10:24 PM
Post: #9
|
|||
|
|||
|
my celica race car with race beams
Looking good Glenn...
 Have you tried a bigger volume airbox to see if there was any improvement as the ram stacks appear close to the lid on that version? I will probably need to get something off you in the near future to sort mine out. I'm currently taking HRT ~ Hachi Roku Therapy
|
|||
|
|
|
09-04-2011, 11:55 PM
Post: #10
|
|||
|
|||
|
my celica race car with race beams
that is some bad ass celica
Cars: "99 Lexus IS200 "86 AE86 Kouki Panda Levin GT-Apex (restore project) "84 AE86 Zenki Blue Levin (project racer) Motorcycles: "02 Yamaha R1 "02 Honda Hornet S "08 BMW R1200GS |
|||
|
|
|
