Red top in the ae86
04-27-2022, 06:13 AM
Post: #11
Red top in the ae86
As many pointed out to be 100% sure some closer investigation would be needed but I'd bet a beer what you have is a big port so going by the silly colour naming scheme a blue one.

AE86 ex-daily
Visit this user's website Find all posts by this user
04-27-2022, 02:15 PM
Post: #12
Red top in the ae86
The easiest check is to compare the VIN to the engine block number to see if you have an engine swap. The engine block number is on the exhaust side near the flywheel. Also you can not go by 7 ribs. late model 1987 blue tops engines came with 7 ribs.
Find all posts by this user
04-27-2022, 05:28 PM
Post: #13
Red top in the ae86
(04-27-2022 02:15 PM)Dave W Wrote:  The easiest check is to compare the VIN to the engine block number to see if you have an engine swap. The engine block number is on the exhaust side near the flywheel. Also you can not go by 7 ribs. late model 1987 blue tops engines came with 7 ribs.

I think I found it. Lets’s see i think says 201510505

My vin is AE86L-ECMQFW
Find all posts by this user
04-27-2022, 09:12 PM (This post was last modified: 04-27-2022 09:43 PM by banpei.)
Post: #14
Red top in the ae86
(04-26-2022 11:27 PM)Nismo Wrote:  Your engine maybe a redtop with an adaptor plate to fit the TVIS?
To be honest I wouldn't know a sane reason why you would try to fit a TVIS on a smallport. The whole purpose of the TVIS is to have the ability to block off one of the two intake runners per cylinder, which increases the airspeed. This allows the engine to be more fuel efficient in low revs. The idea of the smallport is that the engine will have more torque in the lower revs (at the cost of fuel efficiency) while having a higher airspeed at higher revs compared to the bigport. The drawback is that due to the smaller ports the head is now more restricted in the amount of air/fuel mixture you can get into the engine (at high revs). Those two heads are basically meant for very different purposes.
So the idea of fitting a TVIS to a smallport makes as much sense as fitting a TVIS to a 20 valve VTT head.

(04-27-2022 05:28 PM)gh0st Wrote:  I think I found it. Lets’s see i think says 201510505

My vin is AE86L-ECMQFW
AE86L-ECMQFW is your model code. The VIN is the number is the one that starts either with JT2AE86... or AE86-0xxxxxx

1982 - TA60 Carina 4dr sedan - fun cruiser
1983 - AE86 Sprinter Trueno - import project
2013 - Honda Civic sport - daily driver
2004 - AEU86 dot ORG - daily domain

Support our forum, buy from the AEU86 shop:
[Image: AEU86 AE86 - Red top in the ae86]
Visit this user's website Find all posts by this user
04-27-2022, 09:37 PM
Post: #15
Red top in the ae86

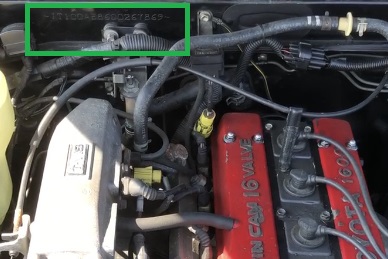

Your VIN is here, will also be stamped on the plate, but this one is probably easier to read:

[Image: AEU86 AE86 - Red top in the ae86]


Attached File(s) Thumbnail(s)

Find all posts by this user
04-28-2022, 10:56 AM (This post was last modified: 04-28-2022 01:20 PM by banpei.)
Post: #16
Red top in the ae86
(04-27-2022 09:12 PM)banpei Wrote:
(04-26-2022 11:27 PM)Nismo Wrote:  Your engine maybe a redtop with an adaptor plate to fit the TVIS?
To be honest I wouldn't know a sane reason why you would try to fit a TVIS on a smallport. The whole purpose of the TVIS is to have the ability to block off one of the two intake runners per cylinder, which increases the airspeed. This allows the engine to be more fuel efficient in low revs. The idea of the smallport is that the engine will have more torque in the lower revs (at the cost of fuel efficiency) while having a higher airspeed at higher revs compared to the bigport. The drawback is that due to the smaller ports the head is now more restricted in the amount of air/fuel mixture you can get into the engine (at high revs). Those two heads are basically meant for very different purposes.
So the idea of fitting a TVIS to a smallport makes as much sense as fitting a TVIS to a 20 valve VTT head.
When my car came over from Japan, this is the setup I had, which I found strange.

There is only one true Nismo at AEU86
Find all posts by this user
04-28-2022, 01:27 PM
Post: #17
Red top in the ae86
(04-28-2022 10:56 AM)Nismo Wrote:  When my car came over from Japan, this is the setup I had, which I found strange.
I still find it a strange decision.
The only reason I can come up with is that they simply couldn't get their hands on a RWD converted smallport intake. It does take some skilled welding to convert it.
Did they delete the TVIS butterflies or were they still present? Dumb question

1982 - TA60 Carina 4dr sedan - fun cruiser
1983 - AE86 Sprinter Trueno - import project
2013 - Honda Civic sport - daily driver
2004 - AEU86 dot ORG - daily domain

Support our forum, buy from the AEU86 shop:
[Image: AEU86 AE86 - Red top in the ae86]
Visit this user's website Find all posts by this user
05-12-2022, 03:55 PM
Post: #18
Red top in the ae86
Just to confuse things a bit more........

The 1st gen largeport (1984-1987 **IF** original) is different from a 2nd gen largeport. The most obvious sign would be the front of the head - the casting is different. If you look down at the front of the head you'll either see a small gap between the cams, or not. The gap means a 1st gen head. No gap - 2nd gen head.

[Image: AEU86 AE86 - Red top in the ae86]


If your plan is to build a standard valve head, I'd strongly recommend using a 1st gen head, as the casting is also different at the bowl! The 2nd gen head is better for a big valve head build.

[Image: AEU86 AE86 - Red top in the ae86]

Dan -

You can |Sad .... OR you can ask for help!!!

OST Porting service - http://hachiroku.net/forums/showthread.php?t=19991
Find all posts by this user
05-13-2022, 09:56 AM
Post: #19
Red top in the ae86
Awesome information oldskewltoy! Thumbs up!
What is mounted on the second generation where those two holes are?

1982 - TA60 Carina 4dr sedan - fun cruiser
1983 - AE86 Sprinter Trueno - import project
2013 - Honda Civic sport - daily driver
2004 - AEU86 dot ORG - daily domain

Support our forum, buy from the AEU86 shop:
[Image: AEU86 AE86 - Red top in the ae86]
Visit this user's website Find all posts by this user
05-13-2022, 06:06 PM
Post: #20
Red top in the ae86
(05-13-2022 09:56 AM)banpei Wrote:  Awesome information oldskewltoy! Thumbs up!
What is mounted on the second generation where those two holes are?
I might be completely wrong but I think it's for the engine mount

AE86 ex-daily
Visit this user's website Find all posts by this user
