my ae86 20v project
09-27-2006, 01:15 PM
Post: #1
my ae86 20v project
hi all

im doing a project so might aswell document it!!

i have a 84 levin, silver over black.

Putting in a blacktop 20v. was going to cut firewall but shell was too good to cut and may also fail the NCT over here in ireland. Tried to go the route of front mount dizzy and fab our own, didnt work the best as found one of the cam bearings may run dry with the setup so now gone for VEMS standalone with water relocation kit.

the current status is that, the subframe and axel have been dropped and are being lightly sandblasted and painted. awaiting on loom to be built. removed all sound deading. getting the underneath and all the arch ready to be protected and painted.

pics to follow

who else ere has an ae86 20v?

RacersHaven.com
Visit this user's website Find all posts by this user
09-29-2006, 12:10 AM
Post: #2
my ae86 20v project
well, Im working on a 20v project.

But mines silvertop. Smile
Visit this user's website Find all posts by this user
09-29-2006, 12:19 AM
Post: #3
my ae86 20v project

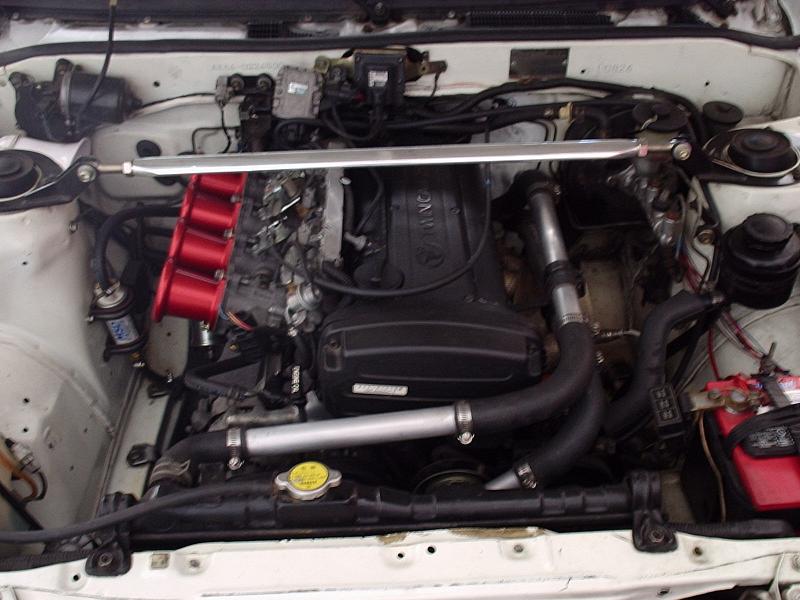

evfan42 Wrote:well, Im working on a 20v project.

But mines silvertop. Smile
me too Wave

[Image: AEU86 AE86 - my ae86 20v project]
Find all posts by this user
09-29-2006, 07:43 AM
Post: #4
my ae86 20v project
i have one Smile blacktop 20v


Attached File(s) Thumbnail(s)


[Image: AEU86 AE86 - my ae86 20v project]





sr86 completed!!........漂うことのマスター!!!!
Visit this user's website Find all posts by this user
09-29-2006, 08:03 AM
Post: #5
my ae86 20v project
i do too have a 20v on my AE86 but i did not cut the firewall and dont have the waterline kit so i bang the firewall and run the waterline pipes above the header. ive had my 20v for more than a year now and it just ran fine and never had any problem with my setup. goodluck to you.


Attached File(s) Thumbnail(s)


[Image: AEU86 AE86 - my ae86 20v project]
Visit this user's website Find all posts by this user
10-16-2006, 01:26 PM
Post: #6
my ae86 20v project
some work over the wknd

http://i53.photobucket.com/albums/g42/vi...CF0238.jpg

http://i53.photobucket.com/albums/g42/vi...CF0249.jpg

http://i53.photobucket.com/albums/g42/vi...CF0258.jpg

http://i53.photobucket.com/albums/g42/vi...CF0243.jpg

RacersHaven.com
Visit this user's website Find all posts by this user
10-16-2006, 01:36 PM
Post: #7
my ae86 20v project
RH Keith Wrote:some work over the wknd


Wow, nice project... keep us update!!!

1985 AE86 (ハチロク) Levin - Summer time daily driver
Find all posts by this user
10-16-2006, 02:49 PM
Post: #8
my ae86 20v project
Hi There,

It´s looking really healthy, without rust on it,so there is only the fun part to make Big Grin



I also have a blacktop in mine,and i also run a VEMSecu,
but i will this winter take it apart, to make lots of change,
Blacktop, turbocharge 350+hp,Hilux rearend, w58 gearbox,
And other stuff,cby fenders and some wide 17" wheels.

So right now i´m looking for some cby flares!
You can see my project car here:
http://smg.photobucket.com/albums/v41/Denmark/

THe current is the silver ae86 blacktop, this is the one i´m going to change


Regards,
Skassa

Any fool can go fast in a straight line.
VEMS Blacktop 4AGTE20V 272hp/350nm
"""www.turbotoys.dk"""
Find all posts by this user
06-12-2007, 01:44 PM
Post: #9
my ae86 20v project
being ages since ive posted!

in saying that thou, not all much has happened as spare time is something i dont have!

eres some more pics to keep ye entertained.

[Image: AEU86 AE86 - my ae86 20v project]

[Image: AEU86 AE86 - my ae86 20v project]

[Image: AEU86 AE86 - my ae86 20v project]

Groved disks and braided lines
[Image: AEU86 AE86 - my ae86 20v project]

T3 traction brackets
[Image: AEU86 AE86 - my ae86 20v project]

Konig rewinds 14x7 -9 on
[Image: AEU86 AE86 - my ae86 20v project]

RacersHaven.com
Visit this user's website Find all posts by this user
06-12-2007, 02:00 PM
Post: #10
my ae86 20v project
full spec is quite long and keeps changin,it can be found on RacersHaven.com

i picked up a spare 20v BT the other week that ill rebuild over the winter.

have to do some plumbing next and some wiring. then put in the VEMS and get that running.

RacersHaven.com
Visit this user's website Find all posts by this user
