Horn assembly
08-10-2018, 12:33 PM
Post: #1
Horn assembly
Hi folks,

I have to change my horn to stock (previously had a air horn). There are 4 connectors so I assume the car usually has 2 horns (low and high pitch) right? I have the part numbers. Has anyone a photo on how to mount these?

Hard to find pictures of that part of the engine bay.

Thanks.
Visit this user's website Find all posts by this user
08-10-2018, 04:20 PM
Post: #2
Horn assembly
If I remember correctly they are mounted with 1 bolt to each of the uprights between the radiator and bumper (with the horns pointing towards the center)

Sent from my MHA-L29 using Tapatalk

AE86 ex-daily
Visit this user's website Find all posts by this user
08-10-2018, 06:50 PM (This post was last modified: 08-11-2018 10:28 AM by Hama86.)
Post: #3
Horn assembly
I made this photo earlier today. Their is one bolt hole and one with a bolt already in. You mean those places? And they face sideways toward the center line of the car?

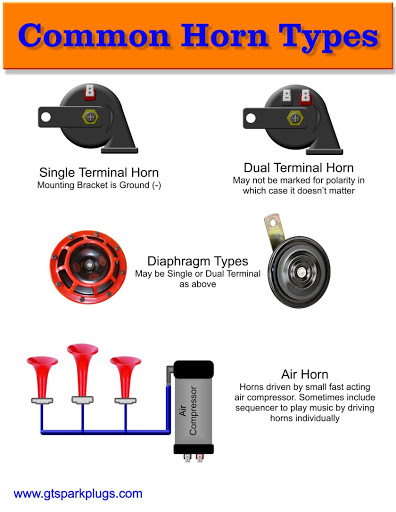

Just to clarify, the horns are diaphragm or snail type?

[Image: AEU86 AE86 - Horn assembly]


Attached File(s) Thumbnail(s)

Visit this user's website Find all posts by this user
08-11-2018, 01:27 AM
Post: #4
Horn assembly
Pictures aren't working for me.

Sent from my MHA-L29 using Tapatalk

AE86 ex-daily
Visit this user's website Find all posts by this user
08-11-2018, 10:28 AM
Post: #5
Horn assembly
(08-11-2018 01:27 AM)Bean Wrote:  Pictures aren't working for me.

Sent from my MHA-L29 using Tapatalk

sorry, I updated the post. I was trying out a new image hoster.
Visit this user's website Find all posts by this user
08-11-2018, 07:06 PM
Post: #6
Horn assembly
They are diaphragm types and one goes where you have the bolt hole, not sure on the swcond one as my previous owner fitted airhorns too and I just installed a small hidden switch to change between them.

Sent from my MHA-L29 using Tapatalk

AE86 ex-daily
Visit this user's website Find all posts by this user
