Banpei's new TA60 family cruiser
06-24-2023, 03:41 PM
Post: #241
Banpei's new TA60 family cruiser
This photo makes it look like your car is in a museum rather than a workshop.

[Image: AEU86 AE86 - Banpei's new TA60 family cruiser]
Find all posts by this user
06-24-2023, 10:51 PM
Post: #242
Banpei's new TA60 family cruiser
(06-24-2023 03:41 PM)Power_uP Wrote:  This photo makes it look like your car is in a museum rather than a workshop.
[Image: AEU86 AE86 - Banpei's new TA60 family cruiser]
Yes it does! Big Grin
Maybe it actually is a museum, they have a Renault 5 GT Turbo parked over there and a Mustang Fastback on a rotisserie. Big Grin

1982 - TA60 Carina 4dr sedan - fun cruiser
1983 - AE86 Sprinter Trueno - import project
2013 - Honda Civic sport - daily driver
2004 - AEU86 dot ORG - daily domain

Support our forum, buy from the AEU86 shop:
[Image: AEU86 AE86 - Banpei's new TA60 family cruiser]
Visit this user's website Find all posts by this user
07-12-2023, 04:07 PM (This post was last modified: 07-12-2023 09:04 PM by banpei.)
Post: #243
Banpei's new TA60 family cruiser
Fast forward three weeks and we're down to this:
[Image: AEU86 AE86 - Banpei's new TA60 family cruiser]
A new engine. Banging head
The block turned out to be warped at cylinder #3, so I had to source a replacement. The photo above shows the engine after cleaning as it was very dirty.

How dirty you may ask:
[Image: AEU86 AE86 - Banpei's new TA60 family cruiser]
This dirty! It's as if someone forgot to drain the engine oil and topping up the engine for the past 10 years! Banging head
It had some lower compression on cylinders #2 and #3, but most probably it was due to the deposits on the exhaust valves and close properly due to this...
Luckily after cleaning the engine it turned out to be in excellent condition and no scoring on the cylinder walls. Hurray!


Attached File(s) Thumbnail(s)


1982 - TA60 Carina 4dr sedan - fun cruiser
1983 - AE86 Sprinter Trueno - import project
2013 - Honda Civic sport - daily driver
2004 - AEU86 dot ORG - daily domain

Support our forum, buy from the AEU86 shop:
[Image: AEU86 AE86 - Banpei's new TA60 family cruiser]
Visit this user's website Find all posts by this user
07-12-2023, 04:18 PM
Post: #244
Banpei's new TA60 family cruiser
Ouch..that sucks.

FABRICA MI DIEM, PVNC!
Visit this user's website Find all posts by this user
07-12-2023, 07:30 PM
Post: #245
Banpei's new TA60 family cruiser
(07-12-2023 04:18 PM)Ivan141 Wrote:  Ouch..that sucks.
Yes it does, but I've accepted the consequences of my negligence. At least now I can sell the car with the knowledge the engine will be good for another 93K kilometers. Wink

I forgot to mention: I sourced a radiator via RDN. The Doctor helped me out with this as RDN tries to sell their old stock via the Dutch Toyota club (TACN) and he acted as the man in the middle. So big thanks to him! Respect!

1982 - TA60 Carina 4dr sedan - fun cruiser
1983 - AE86 Sprinter Trueno - import project
2013 - Honda Civic sport - daily driver
2004 - AEU86 dot ORG - daily domain

Support our forum, buy from the AEU86 shop:
[Image: AEU86 AE86 - Banpei's new TA60 family cruiser]
Visit this user's website Find all posts by this user
07-12-2023, 07:53 PM
Post: #246
Banpei's new TA60 family cruiser
Got myself a new rad too

FABRICA MI DIEM, PVNC!
Visit this user's website Find all posts by this user
07-19-2023, 03:38 PM (This post was last modified: 07-19-2023 03:40 PM by banpei.)
Post: #247
Banpei's new TA60 family cruiser
Another package arrived today with a new water pump:
[Image: AEU86 AE86 - Banpei's new TA60 family cruiser]
The mechanic doesn't trust the one from my own engine and the one on the replacement engine has rusty internals, so that's not a great idea either.

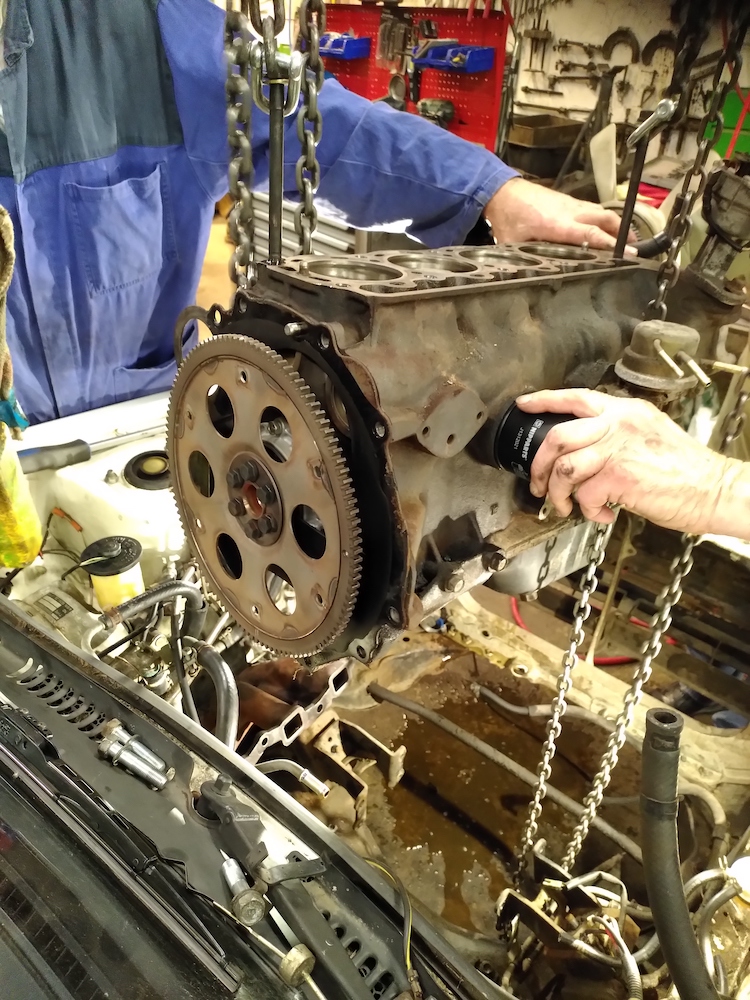

So I dropped by and found the people in the garage doing this:
[Image: AEU86 AE86 - Banpei's new TA60 family cruiser]
Yep, they just lifted the engine out of the car when I arrived.

I also found this on the bench:
[Image: AEU86 AE86 - Banpei's new TA60 family cruiser]
The head came out very well after cleaning, valves were cut and compression test was good! Thumbs up!

Finally, the bottom also was cleaned up well and ready to be mated to the head again.
[Image: AEU86 AE86 - Banpei's new TA60 family cruiser]
So next time I'll hopefully be posting after I have driven the car again! Hurray!


Attached File(s) Thumbnail(s)


1982 - TA60 Carina 4dr sedan - fun cruiser
1983 - AE86 Sprinter Trueno - import project
2013 - Honda Civic sport - daily driver
2004 - AEU86 dot ORG - daily domain

Support our forum, buy from the AEU86 shop:
[Image: AEU86 AE86 - Banpei's new TA60 family cruiser]
Visit this user's website Find all posts by this user
08-11-2023, 11:09 PM (This post was last modified: 08-11-2023 11:16 PM by banpei.)
Post: #248
Banpei's new TA60 family cruiser

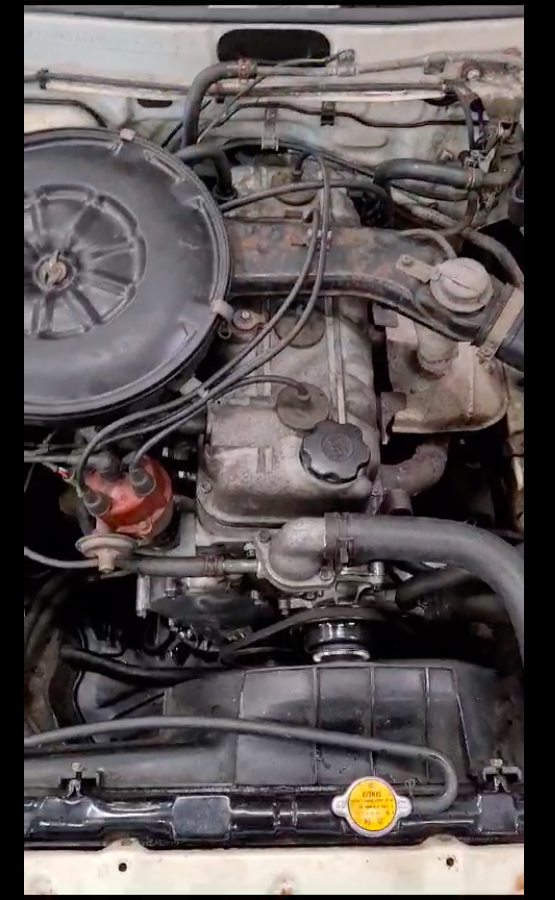

While being on vacation my mechanic rebuilt the engine and installed it:
[Image: AEU86 AE86 - Banpei's new TA60 family cruiser]
This is actually a screenshot of the video he sent me on Wednesday, but forgive me for being lazy and only posting the screenshot. Wink
He said at the end of the video he would test drive the car. On Thursday he called me while I was passing lorries in the left lane on the autobahn, so of course I didn't pick up my phone. Banging head

When I called him back he had bad news for me: during the test drive the engine suffered from fuel starvation so I'll also need a new (mechanical) fuel pump. I found out there are actually two types of fuel pumps for the 2T engine: with two and three connections. The former has an inlet from the fuel filter and outlet towards the carburetor. The latter has an additional outlet for a return line. Both seem to have the same partnumber (23100-19105) and diagrams show both types. Banging head
The partnumber 23100-19105 is tied to the Carina/Celica TA60 specifically, the TA40 has partnumber 23100-29305. The TA40 part is only available with two connectors so I thought they would be interchangable for the 2T. What also didn't help is that the normal suppliers (e.g. autodoc and such) all consider the TA60 and TA40 parts to be the same, have about 3 or 4 alternatives but don't have any of them in stock.

On the photographs of the engine fuel system I made some time ago I could only find an inlet and outlet on the pump, so my assumption was I have a pump with two connectors. With some digging I found a replacement pump by a Slovenian company for a reasonable price and ordered it:
https://www.ptzfuelpump.com/en/fuel-pump...rs/pn-3494
[Image: AEU86 AE86 - Banpei's new TA60 family cruiser]

Then 10 minutes later my mechanic replied to my question and according to him I actually need the one with three connections. Banging head
The only one I could find for sale was via Amayama and ordered that one as well, but it was about three times as expensive...
[Image: AEU86 AE86 - Banpei's new TA60 family cruiser]

I'll await the arrival of both pumps and see which one will fit and then put the other one for sale in the classifieds.


Attached File(s) Thumbnail(s)


1982 - TA60 Carina 4dr sedan - fun cruiser
1983 - AE86 Sprinter Trueno - import project
2013 - Honda Civic sport - daily driver
2004 - AEU86 dot ORG - daily domain

Support our forum, buy from the AEU86 shop:
[Image: AEU86 AE86 - Banpei's new TA60 family cruiser]
Visit this user's website Find all posts by this user
08-15-2023, 10:52 PM (This post was last modified: 08-15-2023 11:09 PM by banpei.)
Post: #249
Banpei's new TA60 family cruiser
Amayama came back with an expected delivery date of the 19th, so it will take another week to arrive. Unfortunately, the mechanic is on holiday as of this Thursday, so it will take at least another month before the fuel pump will be installed. Sad

The rebuild of the engine got out of hand due to various reasons and this makes me wonder if it would still be viable to offer the Carina up for sale. I probably could still run manage to not loose to much on it when offered for sale for 8-9K with all parts, but I doubt any is sane enough to buy a car with clearly visible rust on the front fenders (even though I do have spares) and some other places as well. I could tackle those spots as well, but I'm afraid it ends up as a concourse car that nobody wants to buy because I have to ask more then 10K for it. There has been a second-generation Carina GL for sale in Germany with an asking price of 13K. It has not shifted well over a year now and there clearly is no interest in such a car. So investing more before selling sounds to me like a very unwise move.

So that makes me wonder whether I should keep it as it is or fix it up but then go full kyusha on it like this one:
[Image: AEU86 AE86 - Banpei's new TA60 family cruiser]

1982 - TA60 Carina 4dr sedan - fun cruiser
1983 - AE86 Sprinter Trueno - import project
2013 - Honda Civic sport - daily driver
2004 - AEU86 dot ORG - daily domain

Support our forum, buy from the AEU86 shop:
[Image: AEU86 AE86 - Banpei's new TA60 family cruiser]
Visit this user's website Find all posts by this user
08-16-2023, 06:16 AM
Post: #250
Banpei's new TA60 family cruiser
Go full Kyusha!!
