 Posted: Mon Nov 19, 2007 6:28 am Post subject: Quaife QSR - Installation & manual steering info |
 |
|
Alright, here's another one of my old(er) tech threads, along with some fresh(er) info at the bottom of the page.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Quaife QSR - Installation & manual steering info:
----------------------------------------------------------------------
AE86 Corolla manual steering rack assembly.
Dissassembling a manual rack.
Note: LARGE 24" crescent wrench necessary (lock/retaining nut is 48mm/2" in)
When dissassembling just take it apart and keep everything in order, you don't need to remove the bottom bearing for the pinion gear unless you're replacing it.
Dissassembly:
1. Remove 2 locking nuts (#1 & 2)
2. Remove rack guide cap nut, tension spring, rack guide. (#2)
3. Remove pinion cap nut, pinion gear & top bearing. (#1 & 4)
4. Slide rack gear out of housing - ONLY take it out the drivers side, as pulling it out the passenger will 'score' the pass side end bushing/guide. (#3)
Be sure to clean out as much of the old grease as you can (I used several 3/8" extensions and a couple paper towels to clean out the inside of the rack) Also, make sure the 4 holes just before the end of of the rack housing on the passenger side are clear otherwise you may blow the steering rack boots up or suck them into the gears as it equalizes pressure from one side to the other when moving back and forth.
Dissassembled manual rack: top rack & pinion gear set is toyota factory, bottom rack and pinion is a Quaife Quick-Steering Rack gear kit. The one pictured is a modified Quaife QSR kit with 2 extra teeth cut for additional angle with a Battle Version #2 steering angle kit (if needed).
Manual rack pinion bearing removal
Note: installation is flipping gear opposite way to pull bearing down pinion gear shaft.
NOTE: Use molybdenium lithium based grease for reassembly - it came in a black 'peanut' size can from reibes/napa - kragen/shucks/checkers didn't carry it locally.
Apply grease before assembling to:
Rack gear teeth and lightly coat the back side of the gear tooth area.
Pinion bearings & gear (can be packed into pinion gear area, just dont want to fill the whole rack with grease)
Rack guide & spring as rack gear glides along/against it.
Reassembly.
1. Install rack gear, slide in from drivers side.
2. Install Pinion gear, top bearing and cap/tension nut.
When installing spin down pinion nut cap finger tight, then take a small screwdriver and by hand give a small tug to lightly 'snug' down the pinion gear and bearings - no more pressure than that is necessary, or wanted! It is supposed to be set with a inch lb torque wrench for preload but I've found that finger tight with a tiny snug sets it just as well as it was set from the factory (ie: enough to hold steady with no wobble but light enough it spins freely).
3. Install rack guide, spring and cap/tension nut.
I puchased a 3/4" (?) size bolt and 2 nuts from home cheapo that fit into the cap correctly so I could tighten down the cap/tension nut with ease. Snug down by hand & wrench until the rack gear/shaft has no lateral (forward/back & up/down) play, but moves left and right with no catching and/or binding.
4. Install locking nuts.
----------------------------------------------------------------------
For reference:
AE86 Corolla Manual steering intermediate shaft vs p/s intermediate shaft
AE86 Corolla Manual rack intermediate steering shaft installed
Note: due to low height of manual rack, the steering shaft was 'pulled' out farther than shown in picture.
If you do not have the manual rack intermediate steering shaft, you can take two p/s column's, cut the end off of one column at about 3.75" (3 3/4)" and weld it to the second for the extended reach.
AE86 Corolla Manual vs PS rack pinion shaft size
As can be seen in the picture, the p/s and manual rack pinion shafts are different sizes. Which means you cannot use the u-joint for the p/s on the manual rack or vice versa.
AE86 Corolla Manual (top) vs P/S (bottom) driver side brackets
I decided to go with the P/S bracket (bottom) as it is much stronger.
AE86 Corolla Manual Rack (center & right) vs P/S (left) pass side brackets
Note: the markings are around the areas that needed to be ground/widened to fit correctly on my originally P/S equipped vehicle. (may vary from vehicle to vehicle - not sure if it'll be necessary on anyone elses)
----------------------------------------------------------------------
Misc.
AE86 Corolla manual steering factory pinion gear vs. quaife qsr pinion gear (quaife left/lower, factory right/upper)
AE86 Corolla Manual vs P/S Rack
AE86 Corolla Manual rack installed.
----------------------------------------------------------------------
Link to a video of steering angle (provided by nimdivo)
http://home.comcast.net/~nimdivino/quaifeqsr.wmv
UPDATE: after spraying my inner fender area with some undercoat, to cover the area I hammered back to clear tires with ncrca's & 2.5 degrees caster I notice I AM rubbing on the inner unibody frame rail on both sides at full-lock with the p/s knuckles.
So, in other words. If you run p/s knuckles you won't need a BV kit or aftermarket (ueo/jic/etc) tie rod ends, as it wont help you get more angle. Or atleast without some super wide offset rims, or really far out there adj. control arms/ncrca's
UPDATE 2: just an FYI, aw11 rack housings are the same as the ae86, the only difference is the aw11 rack 'pinion' gear shaft is 1 inch longer and doesn't need the column extended as far as the ae86 rack & pinion gear. (NOTE: if you swap the quaife qsr into the aw11 rack it would be the exact same as an ae86 rack equiped with a QSR)
UPDATE 3: From my posts regarding manual rack/qsr on club4ag regarding column extension/adapters
--------------------------------------------------------------------------------
I just took a quick measurement, there's an extra 1 1/4" of shaft that should be inside the column extension.
Some quick math on the differences in ae86 manual rack column & intermediate shaft differences = 3.825" extension would be perfect. (just a hair under 3 53/64" which is the combined difference between the total lengths of the manual & p/s column and shafts.)
So if you were going to weld to the column/make and adapter: I'd just round it down to 3.75 - 3 3/4" for the extension if installing a quaife qsr/oem ae86 manual rack
Subtract 1" if using an aw11 manual rack.
--------------------------------------------------------------------------------
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
UPDATE 11/15/07:
Parts necessary to convert to manual steering on an AE86; multiple choices/ways.
1. Steering rack.
A.) AE86 manual rack
B.) AW11 manual rack
Note: both will need to use AE86 inner & outer tie rod ends. The AW11 inner tie rods are too long, and the outers won't fit.
2. U-joint/Rag-joint between manual rack & steering column/intermediate shaft.
A.) AE86 manual rack u-joint
B.) AW11 manual rack u-joint
3. Passenger side brackets or adapters.
A.) AE86 OEM manual rack brackets with OEM/Poly manual rack bushings.
B.) Homemade manual rack brackets with OEM/Poly manual rack bushings.
C.) T3 Manual rack conversion bushings, utilizing the power steering rack brackets.
Tip: the power steering drivers side bracket is stronger than the manual steering version, so I recommend using the drivers side power bracket.
4. Intermediate shaft or steering column extension.
A.) AE86 manual steering column & intermediate shaft.
B.) AE86 power steering column, weld on column extension. So that the intermediate shaft is able to reach the steering rack to connect them with the U-joint.
(Approx 3.5" length extension if using an AE86 manual rack, 2.5" for AW11 manual racks.
NOTE: This is going off of measurements on the AE86 rack, and 3rd party information on the AW11 rack. AS I have been told the steering rack splined shaft is 1" longer on the AW11 manual rack, than the AE86 rack.
IF you're going to weld an extension on, be SURE to take measurements and verify it for yourself!!!)
C.) AE86 power steering column & MKIII/MK3 Supra Intermediate shaft.
_________________________________________________________
UPDATE 11-18-07
Just to confirm it, I went to the junkyard today and pulled an MKIII/MK3 Supra intermediate shaft. It will work VERY well for an AE86 manual steering swap. Matter a fact, I'm going to change it out with my AE86 one as it will give me a stronger setup.
The reason being using an AE86 manual intermediate shaft with the power column leaves you with only 1/2-1" of insertion into the column... with the MKIII Supra one I'll have 2-2.5". Making it a much stronger connection.
___________________________________________________________
Anyone got any other suggestions, tips or answers?
Andrew
|
|
| Back to top |
|
 |
totta Crolla
Takumi
Joined: 09 Sep 2005
Posts: 339
Location: Oxford U.K
|
| Posted: Tue Nov 20, 2007 12:55 am Post subject: |
|
|
It's worth renewing the bush in the rack housing, located on the opposite end to the pinion shaft. When this wears you get a knocking noise and the steering feels less precise.
A tip for removal of this bush:
Mig weld a bead around the inside of the old bush, this will make it contract and it should just drop out onto the floor, mine did
Heating the rack housing did not work for me....... and neither did bashing the bush with a drift/hammer !!
_________________
"accidents are rare but you're a long time dead"
|
|
| Back to top |
|
|
robokill
Bunta
Joined: 07 Sep 2004
Posts: 2604
Location: Amsterdam // The Netherlands
1986 Toyota Corolla AE86 (late EU)
|
| Posted: Tue Nov 20, 2007 1:01 am Post subject: |
|
|
hey assasin it sounds very good. One question we might need to build a list of items that are exchangeable with other toyota's. Like the AW11 steering rack!
_________________
"08 Honda Civic Hybrid
"86 AE86 Kouki Panda Levin GT-Apex (restore project)
"84 AE86 Zenki Blue Levin (project racer) http://www.cardomain.com/ride/613398
AE86 Drive it, Skid it, Drift it.
KIS it
Keep It Sideways
|
|
| Back to top |
|
|
Jimmi The Kid
Wataru
Joined: 28 Jul 2006
Posts: 56
Location: Denmark
|
| Posted: Tue Dec 11, 2007 10:22 pm Post subject: |
|
|
Hey
I have the Quaife quick steering rack in my manuel AE86 rack. But it is very very hard to turn the streering wheel, allmost imposible when standing still.
I wondered about a power steering rack, but I will keep my QSR. I know the Quaife rack don't fit an AE86 power steering rack, but will it fit other racks?
I've have olso notice the power steering in this video. It sound like an electric motor, like the one fittet in RC cars.
Listen 50sec in the video http://www.youtube.com/watch?v=u2z58i97KhE
Does anyone know were to buy this???
_________________
AE86 newbie - but 20v oldie...
Project AE86 now begun.
Cars I have owned:
Toyota Starlet EP91 1,3 16v
Toyota Starlet EP71 1,3 12v Sport
Mercedes 207D camper, 1977.
Toyota Starlet EP70 with a 174hp Silvertop 20v See video here:
http://videos.streetfire.net/search/Starlet/0/4...-984601079edc.htm
Toyota Corolla AE101 with a 164hp Silvertop 20v. (Evolution bodykit and candycolor paint).
Volvo 240 2,1 (The only car I have maked money on).
Toyota Corolla EE90 (my first car)
|
|
| Back to top |
|
|
assassin10000
Ryousuke
Joined: 31 Aug 2006
Posts: 147
Location: Northern CA (USA)
|
| Posted: Wed Dec 12, 2007 2:58 am Post subject: |
|
|
| Jimmi The Kid wrote: |
I wondered about a power steering rack, but I will keep my QSR. I know the Quaife rack don't fit an AE86 power steering rack, but will it fit other racks?
|
Not possible afaik.
You could buy a steering quickener to add to the p/s column though. It's a gear reduction drive that will allow you 'less' turns lock to lock via the column, rather than the rack. BUT the big disadvantage to this, is you won't get the benefits of the addional angle that you get with a manual rack.
Andrew
|
|
| Back to top |
|
|
Jimmi The Kid
Wataru
Joined: 28 Jul 2006
Posts: 56
Location: Denmark
|
| Posted: Wed Dec 12, 2007 7:00 pm Post subject: |
|
|
Okay thanks.
Do you know were can I buy this steering quickener? And can I see some pictures?
I will mostly use my AE86 for trackdays, I don't know about drifting yet. One thing at the time.
_________________
AE86 newbie - but 20v oldie...
Project AE86 now begun.
Cars I have owned:
Toyota Starlet EP91 1,3 16v
Toyota Starlet EP71 1,3 12v Sport
Mercedes 207D camper, 1977.
Toyota Starlet EP70 with a 174hp Silvertop 20v See video here:
http://videos.streetfire.net/search/Starlet/0/4...-984601079edc.htm
Toyota Corolla AE101 with a 164hp Silvertop 20v. (Evolution bodykit and candycolor paint).
Volvo 240 2,1 (The only car I have maked money on).
Toyota Corolla EE90 (my first car)
|
|
| Back to top |
|
|
assassin10000
Ryousuke
Joined: 31 Aug 2006
Posts: 147
Location: Northern CA (USA)
|
| Posted: Wed Dec 12, 2007 7:23 pm Post subject: |
|
|
| Jimmi The Kid wrote: | Okay thanks.
Do you know were can I buy this steering quickener? And can I see some pictures?
I will mostly use my AE86 for trackdays, I don't know about drifting yet. One thing at the time. |
I listened to the video, all I can hear is steering column/seat squeaks. I'm not sure what noise your refering too.
Here's some steering quickeners. These would take a bit of fabrication to get them to work, as they are all 'GM' splines. It'd also require removal of parts of the OEM steering column, welding in the necessary pieces to attatch the quickener, as well as a mount for it.
AFCO - mfg/brand.
38051 1.5:1 ratio quickener
38050 2.0:1 ratio quickener
Howe Racing
522B2 2.0:1 ratio quickener
5220 1.5:1 ratio quickener
Andrew
|
|
| Back to top |
|
|
totta Crolla
Takumi
Joined: 09 Sep 2005
Posts: 339
Location: Oxford U.K
|
| Posted: Wed Dec 12, 2007 8:45 pm Post subject: |
|
|
| Jimmi The Kid wrote: | Hey
I have the Quaife quick steering rack in my manuel AE86 rack. But it is very very hard to turn the streering wheel, allmost imposible when standing still.
I wondered about a power steering rack, but I will keep my QSR. I know the Quaife rack don't fit an AE86 power steering rack, but will it fit other racks?
I've have olso notice the power steering in this video. It sound like an electric motor, like the one fittet in RC cars.
Listen 50sec in the video http://www.youtube.com/watch?v=u2z58i97KhE
Does anyone know were to buy this??? |
A lot of the people running MK2 escorts use a modified to fit, Vauxhall Corsa electric motor assisted steering column. I have considered this myself as it could be a worthwhile and relatively cheap upgrade
_________________
"accidents are rare but you're a long time dead"
|
|
| Back to top |
|
|
Jimmi The Kid
Wataru
Joined: 28 Jul 2006
Posts: 56
Location: Denmark
|
| Posted: Wed Dec 12, 2007 9:36 pm Post subject: |
|
|
| assassin10000 wrote: |
I listened to the video, all I can hear is steering column/seat squeaks. I'm not sure what noise your refering too.
Andrew |
Listen to it 50sec. in the video, It sounds like an steering motor for an RC car. The engine is stopped, so he can absolutely not turn the steering wheel like that standing still, without a power steering. I'm sure thats an electric power steering.
When you ad the steering quickeners, the steering wheel will be lighter to turn right? But that will also mean, you got to turn the sterring wheel a lot more, to get the same angel, right? Thats not good.
I fitted the QSR because I want a tighter and more direct steering, but now, I just getting tired in my thin arms,

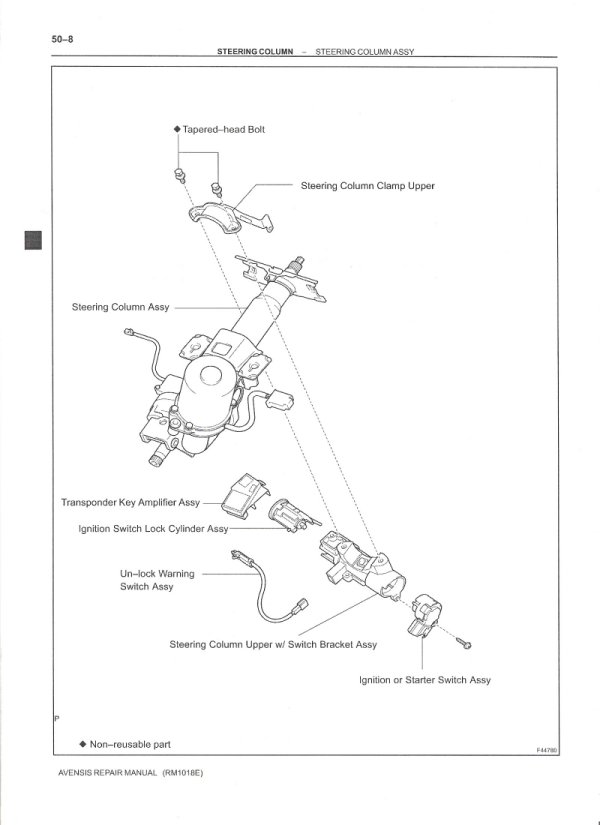

Toyota also got some cars here ind Europe, with electric assisted power steering. Its an electric motor, fittet to the steering column. Both the EU Corolla and Avensis use it, only with their gasoline engines. But, I think it aquire a lot of computers and so, because its speed dependent.
I think I will make a liltle research on this one.
Thanks guys
_________________
AE86 newbie - but 20v oldie...
Project AE86 now begun.
Cars I have owned:
Toyota Starlet EP91 1,3 16v
Toyota Starlet EP71 1,3 12v Sport
Mercedes 207D camper, 1977.
Toyota Starlet EP70 with a 174hp Silvertop 20v See video here:
http://videos.streetfire.net/search/Starlet/0/4...-984601079edc.htm
Toyota Corolla AE101 with a 164hp Silvertop 20v. (Evolution bodykit and candycolor paint).
Volvo 240 2,1 (The only car I have maked money on).
Toyota Corolla EE90 (my first car)
|
|
| Back to top |
|
|
NoHachi
Moderator
Joined: 07 Sep 2004
Posts: 2223
Location: Delft - The Netherlands
|
| Posted: Wed Dec 12, 2007 11:54 pm Post subject: |
|
|
The electronics are the least of your problems. I know that they make speed-sensor simulators for the vauxhall corsa racks that allow you to adjust your steering effort from zero to no-assistance at all. The difficult part is getting the whole thing in place..thats a fairly big custom job in one place of the car that you absolutely have to get right.
I say man up and go to the gymn or something..Alternatively: slap on some front tires that are less wide and run a few more tenths of a bar in them.
_________________
A wheel to steer the front of the car
A pedal to steer the rear
|
|
| Back to top |
|
|
Jan Pedersen
Moderator
Joined: 07 Sep 2004
Posts: 1261
Location: Herning, Denmark
1986 Toyota Corolla AE86 (late EU)
|
| Posted: Thu Dec 13, 2007 8:30 am Post subject: |
|
|
Jimmi either you go to the gym or you could ask Martin Bjerre... He used a rack from an old Carina and an electric servo from a MR2 I think. It wasn't easy but it worked
_________________
Sarcasme is just one of the things I offer
Daily driver: '92 Toyota Carina E GTI
Rebuilt project: '86 Levin hatch
|
|
| Back to top |
|
|
assassin10000
Ryousuke
Joined: 31 Aug 2006
Posts: 147
Location: Northern CA (USA)
|
| Posted: Thu Dec 13, 2007 6:48 pm Post subject: |
|
|
| Jimmi The Kid wrote: |
When you ad the steering quickeners, the steering wheel will be lighter to turn right? But that will also mean, you got to turn the sterring wheel a lot more, to get the same angel, right? Thats not good.
I fitted the QSR because I want a tighter and more direct steering, but now, I just getting tired in my thin arms,
|
I meant you could add the quickener to a POWERSTEERING equipped vehicle to get quicker response, while having easier steering.
But with the loss of road feel & achievable angle.
Andrew
|
|
| Back to top |
|
|
Jimmi The Kid
Wataru
Joined: 28 Jul 2006
Posts: 56
Location: Denmark
|
| Posted: Thu Dec 13, 2007 9:34 pm Post subject: |
|
|
Mayby I should work out
This quickener is good idea, but not the best.
I have found some drawing of the Avensis power steering motor and its not impossible. Fitting the car is not a problem - I think, its just metalwork and will just take some time.
_________________
AE86 newbie - but 20v oldie...
Project AE86 now begun.
Cars I have owned:
Toyota Starlet EP91 1,3 16v
Toyota Starlet EP71 1,3 12v Sport
Mercedes 207D camper, 1977.
Toyota Starlet EP70 with a 174hp Silvertop 20v See video here:
http://videos.streetfire.net/search/Starlet/0/4...-984601079edc.htm
Toyota Corolla AE101 with a 164hp Silvertop 20v. (Evolution bodykit and candycolor paint).
Volvo 240 2,1 (The only car I have maked money on).
Toyota Corolla EE90 (my first car)
|
|
| Back to top |
|
|
improvedae86
Wataru
Joined: 31 Dec 2007
Posts: 52
Location: Australia
|
| Posted: Thu Jan 17, 2008 8:52 pm Post subject: |
|
|
Great thread on so many ae86 forums
But one question : what is the ratio of the rack ? with this gear set fitted
i am guessing that the NON powersteering racks you have there are the same as ones here
AE86 : 16 : 1
also i have looked at the following for replacing it
SW20{MR2} : 16.6 : 1 , 2.7 in SW20{MR2}
MR-S{MR2} : 13.6 : 1 but the rack is front mounted so would require a gearbox to reverse direction , fitted in a AE86 with its shorted arms is gives 2.2 turns from 2.6 in the MR-S
s13/240sx : ???? No doubt No Hachi will know
s14 : 17.49 : 1
Late EVO : 13 : 1 still trying to get hold of a rack for measurements
EVO CT9A RS RHD 11.8 : 1
MR2 is a manual powersteering rack with a external electric powersteering pump as per MR-S as well. There very unreliable over here and cannot supply the pressure to keep up with going from full lock one direction to the other.
|
|
| Back to top |
|
|
ZDoman
Takumi
Joined: 20 Mar 2005
Posts: 263
Location: Hungary
|
| Posted: Thu Jan 17, 2008 11:49 pm Post subject: |
|
|
3 of my friend uses the suzuki ignis electris ps column with their quaife qsr.
Its working.
I don't have pictures at this time and I don't know how they did it, but I know the whole thing was under 400 EUR. I'll try to get some pics.
|
|
| Back to top |
|
|
|
|
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum
You can attach files in this forum
You can download files in this forum
|
|
