BT20V out F20C in !!
|
|
07-03-2012, 10:09 PM
Post: #1
|
|||
|
|||
|
BT20V out F20C in !!
My loved Blacktop beeing remooved from the car..
![[Image: AEU86 AE86 - BT20V out F20C in !!]](https://www.aeu86.org/files/im/imag0049_762.jpg "AEU86 AE86 - BT20V out F20C in !!") in the car [img name=]http://www.aeu86.org/files/ri/rimg0011_142.jpg[/img] drifted 20V [img name=]http://www.aeu86.org/files/ds/dsc_0049_copy_263.jpg[/img] And now!! [img name=]http://www.aeu86.org/files/ri/rimg0024_111.jpg[/img] F20C mounts homemade as it was too expancive to buy [img name=]http://www.aeu86.org/files/ri/rimg0027_978.jpg[/img] gearbox mount [img name=]http://www.aeu86.org/files/ri/rimg0028_166.jpg[/img] The mounts will be well reinforced before finish. . !! I will update JZD |
|||
|
|
07-04-2012, 12:50 AM
Post: #2
|
|||
|
|||
|
BT20V out F20C in !!
nice project mate

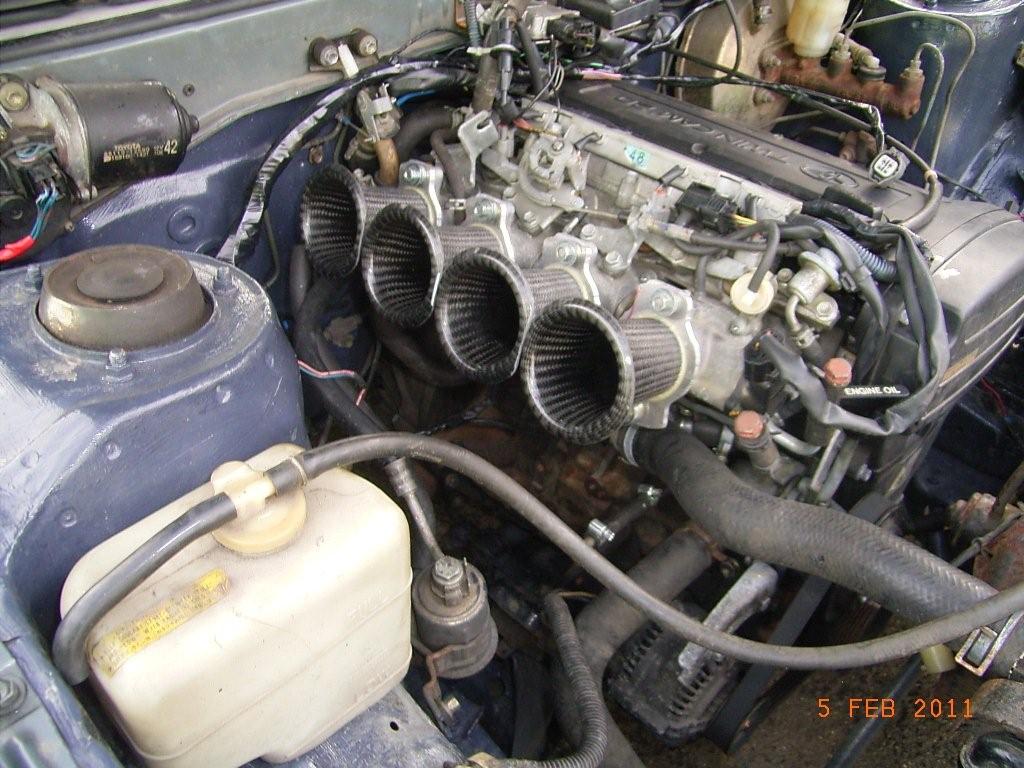

your car is back on the roads??? do you sell bt velocity stacks? ![[Image: AEU86 AE86 - BT20V out F20C in !!]](http://i279.photobucket.com/albums/kk151/skastras/IMG_1181.jpg "AEU86 AE86 - BT20V out F20C in !!")
|
|||
|
|
|
07-04-2012, 02:11 PM
Post: #3
|
|||
|
|||
|
BT20V out F20C in !!
More pics of the swap please!
AE86 GT - SR20DET BlackTop //// Trackday beater Citroen C4 Coupe VTR - 1.6HDi //// Streetcar |
|||
|
|
|
07-05-2012, 08:19 AM
Post: #4
|
|||
|
|||
BT20V out F20C in !!
Petros AE86 Wrote:nice project mate Hi Thank you for the comment.. One guy, who is really Toyota guy, I promissed him whole RWD 20V with stacks also.. If you are really interested I could manage to let them fabricate for you, but it wasn't absolutely cheap... corbon fieber trumpets = great look, great sound JZD |
|||
|
|
|
07-05-2012, 08:22 AM
Post: #5
|
|||
|
|||
|
BT20V out F20C in !!
Exhaust moded to AE86
[img name=]http://www.aeu86.org/files/ri/rimg0131_122.jpg[/img] JZD |
|||
|
|
|
07-05-2012, 08:28 AM
Post: #6
|
|||
|
|||
|
BT20V out F20C in !!
40mm spacers for crossmember. I am not going to cut anything on the chassis. As I would like to keep the stock look.
I am going to modify crossmember and use these spacers [img name=]http://www.aeu86.org/files/ri/rimg0132_676.jpg[/img] crossmember [img name=]http://www.aeu86.org/files/ri/rimg0138_417.jpg[/img] By the way I am not back on the roads yet.. (: JZD |
|||
|
|
|
07-05-2012, 08:30 AM
Post: #7
|
|||
|
|||
|
BT20V out F20C in !!
here is some photos and text of my hachi with BT20V
http://www.86ers.org/cz/2011/03/31/86-li...alo-o-lsd/ http://www.86ers.org/cz/2011/02/07/86-li...-86-u-nas/ JZD |
|||
|
|
|
07-05-2012, 10:36 PM
Post: #8
|
|||
|
|||
|
BT20V out F20C in !!
the problem with those mods are the front arms that are not going to work properly. you are going to have a lot of steering bump.
SR Team BURN THE RUBER NOT YOUR SOUL! |
|||
|
|
|
07-05-2012, 10:49 PM
Post: #9
|
|||
|
|||
|
BT20V out F20C in !!
my subframe is spaced down 1.75 inches and i got the bump steer spacers, she still handles amazing!!!!! your lucky you have left hand drive so much easier !!! funny i did a ca swap on a left hand drive and now a f20c swap on right hand drive, i think im backwards
 good luck with the project looking good so far if you have any questions feel free to ask
|
|||
|
|
|
07-05-2012, 10:55 PM
Post: #10
|
|||
|
|||
|
BT20V out F20C in !!
give me a price mate..
|
|||
|
|
|
